Weld Carmo eyelets with your existing bar welder
Using these eyelet setter inserts in your existing HF welding equipment, will allow you to weld Carmo’s range of PVC and PVC/PUR eyelets with a minimal investment

These cut and weld eyelet setter tools and electrode are precision-tools, carrying out two tasks in one: Punching the central hole and acting as electrode and clamp for the HF welding.

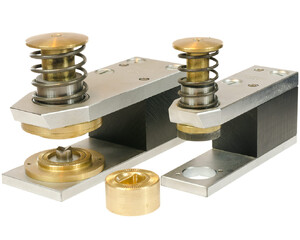

The UG4 with electrode insert is designed for use with a HF welding press or bar welder and has been constructed for quick interchanging of the different electrodes.


The UG4 eyelet setter tool is available in three sizes:

ModelEyelet geometryEyelet sizesDimensions
UG4-M20Round5 mm to 15 mm(H=135mm,W=55mm,L=165mm)
UG4-M30Round19 mm(H=145mm,W=75mm,L=200mm)
UG4-M50Oval9/42 mm to 40/67 mm(H=215mm,W=125mm,L=120mm)

These tools are designed, hand-built and tested in Denmark, offering superb quality and durability .

We supply the UG4 with requested electrode and is ready for operation out of the box.

Please Contact sales for details on electrodes and options for our different weldable components and eyelet setter tools.

Bestillings og variant information

Alle målinger og tegninger er nominelle. For nøjagtige mål - og kritisk integration - kontakt venligst salg for detaljerede tegninger. Carmo er ikke ansvarlig for trykfejl og tekniske ændringer.

UG4 -
Odre#BeskrivelseFra lagerEgenskaberKommentarer
07-711-0020UG4-M20 5 Electrodestand
07-711-0030UG4-M30 Electrodestand
07-711-0040UG4-M50 Electrodestand with guides (for oval elect

(*) Mindre kvantiteter kan leveres mod et ompakningsgebyr.
