Carmo has more more than fifty years of experience in developing and manufacturing weldable PVC eyelets in a wide variety of colors and sizes.
Carmo is a world leader in this field. We blend the right composition of raw materials to meet your specific demands for performance, weather conditions, UV radiation exposure, etc.
HF Welded eyelets will fuse together with the foil and result in a joint that is significantly stronger and can withstand significantly higher pull forces. This is especially true when working in mesh materials.
Carmo eyelets are typically used for reinforcement of holes in foils and fabric
| Materials: PVC, PE, PVC/PUR PVC is standard, PE or PVC/PUR: please ask Other colours: please ask |

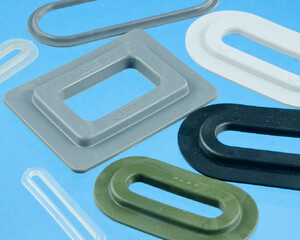

Eyelets with square shoulders
| No | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | Matching cleat |
|---|---|---|---|---|---|
| 04-134 | 27.0 | 41.0 | 6.1 | 20.4 | – |
| 04-204 | 42.4 | 71.2 | 9.5 | 38.7 | 05-446 |
| 04-206 | 51.2 | 85.2 | 13.4 | 47.2 | 05-646 |
| 04-403 | 40.4 | 72.9 | 20.0 | 52.5 | – |
| 04-205 | 43.5 | 81.4 | 24.7 | 62.0 | – |
Eyelets with round shoulders
| No | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | Matching cleat |
|---|---|---|---|---|---|
| 04-140 | 45.0 | 52.0 | 4.0 | 11.3 | – |
| 04-141 | 88.5 | 100.5 | 24.5 | 36.5 | – |
Use as lock in combination with Carmo’s cleats:
| Cleat 05-446 and eyelet 04-204 | Cleat 05-646 and eyelet 04-206 | |
 |  |
Bestillings og variant information
Alle målinger og tegninger er nominelle. For nøjagtige mål - og kritisk integration - kontakt venligst salg for detaljerede tegninger. Carmo er ikke ansvarlig for trykfejl og tekniske ændringer.
