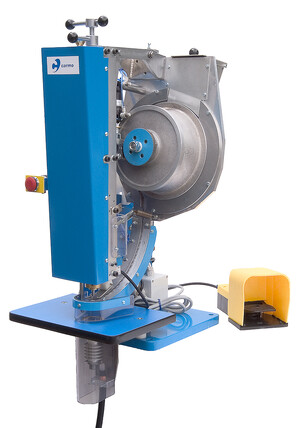

The 6010 is a stationary eyeletting machine for single sided punching and welding of small (5mm and 8 mm) eyelets.

It is our fastest machine, offering automatic feeding and 20-25 operations per minute (depending on material, operator speed, generator etc.)

https://carmo.wistia.com/medias/nawapkopog?embedType=async&videoFoam=true&videoWidth=640

Optimized for small eyelets

  • Supports 5 and 8 mm eyelets.
  • Special feeding mechanism to secure correct feeding and orientation of small eyelets.

Our fastest eyeletting machine

  • Punching and welding in one operation.
  • Automatic feeding of eyelets.
  • 20-25 operations per minute
    (depending on material, operator speed, generator etc.)

Ease of operation and maintenance

  • The feeder is equipped with a foot pedal for activation of the punching and welding operation.
  • A safety shield protects the operator.

The feeder drum with feeder bar is equipped with adjustable delrin guide between backplate and slide, which ensures correct positioning of the slide, so that the eyelet is caught correctly by the punch needle.

New improved time relay steering of the drum secures optimum feeding of eyelets from drum to slide. The time relay is connected to socket(24 V or 220 V) or directly to the HF-generator.

Please Note:

The 6010 requires connection to compressed air equipment and a High Frequency generator (2.5 – 3 kW recommended).


Bestillings og variant information

Alle målinger og tegninger er nominelle. For nøjagtige mål - og kritisk integration - kontakt venligst salg for detaljerede tegninger. Carmo er ikke ansvarlig for trykfejl og tekniske ændringer.


6010 - Automatisk svejsemaskine til HF svejsning af små ringe
6010 er en stationær presse til en-sidet isvejsning af små plastik ringe og PVC ringe (5mm og 8mm). 6010 skal tilsluttes HF generator og trykluft.
Odre#BeskrivelseFra lagerEgenskaberKommentarer
07-768-70006010 Automatic welding machine for 5 mm eyelets
07-768-70526010 Automatic welding machine for small 8 mm eyel
6010-electrodes -
Odre#BeskrivelseFra lagerEgenskaberKommentarer
07-453-7010
07-453-7030Electrode for 6010 Machine , 8 mm

(*) Mindre kvantiteter kan leveres mod et ompakningsgebyr.
