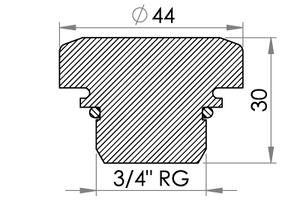

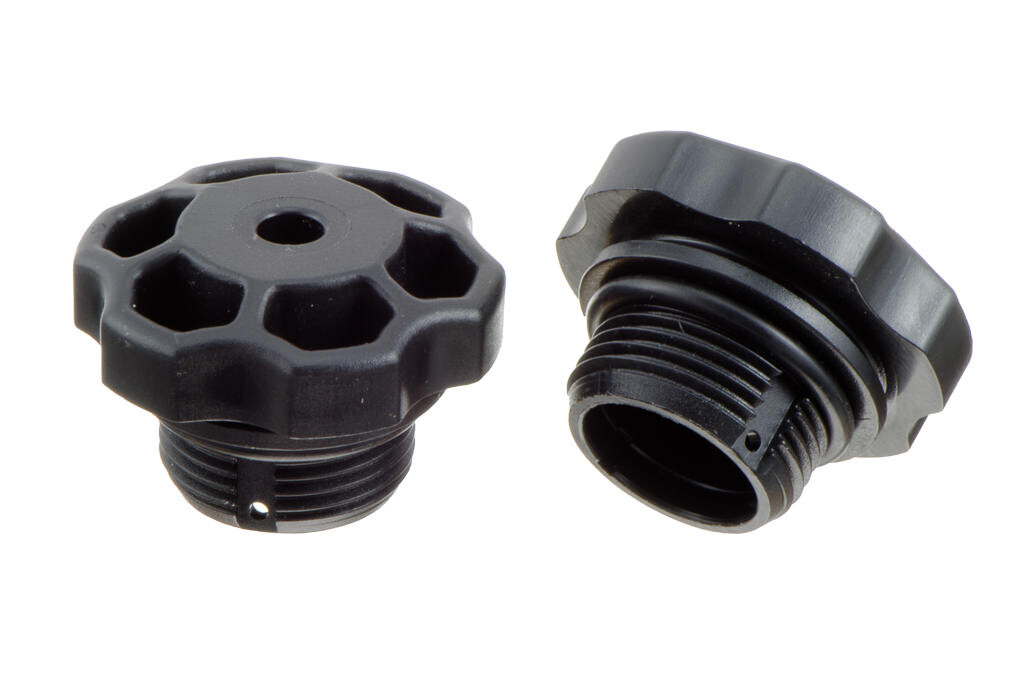

ABS solid plug that can be screwed into the ¾” pipe thread (European) of the weldable PVC flange 03-601 when not in use.
A rubber gasket will seal the join and ensure that it is air and water-tight.
Carmo's modular valve system is built around a common weldable flange, which is available in materials suitable for HF welding on PUR or PVC.
The valve features a standard 3/4" socket in which the three functional valves can be mounted:
- Inflation valve
- Vaccum valve
- Pressure relief valve
- Variants on stock shipped worldwide within 5 businessdays
- Variants on stock available in small quantities
- Can be ordered in other colors and materials
- Produced in Denmark using quality raw materials from EU-based suppliers
Carmo A/S's quality management system is certified to ISO 13485:2016 Medical devices quality management system by Bureau Veritas (accredited by DANAK), certificate no. DK020611. Scope: Design, development, manufacture and assembly of injection molded plastic components. Valid: 2. September 2026 – 1. September 2029.
All Carmo plastic components are manufactured under the same QMS and procedures.
| Order# | Material | Color | From stock | Standard Pack | Proper- ties | Use | Comments | MOQ (pcs.) | In stock (pcs.) |
|---|---|---|---|---|---|---|---|---|---|
| 03-475-7002 | ABS+Rubber | 1 x 1.000 | 1.000 | 3.251 |
Need a smaller quantity? Tell us how many you need. We may be able to repack for a fee, or refer you to one of our distributors.
| Fits with | |
| Related products | |
| Customers also bought |
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
