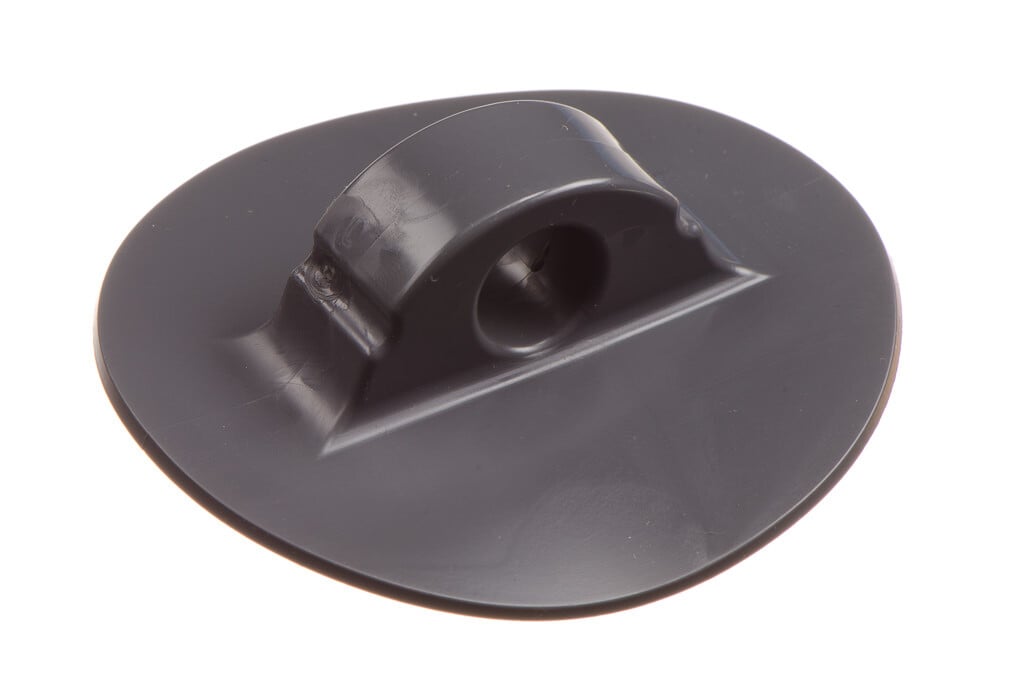

Widely used with rope or line on inflatable products, play equipment, floating toys, hangers for ventilation socks. For rope, wire or shock cord up to 11 mm. 65 mm round base.

Technical specification:
PVC PY28 (high tensile strength, hardness 96 shore A)
PVC PG47 (hardness 80 shore A)
PVC PG57 (hardness 75 shore A, well suited to low temperatures)
PVC/PUR PD74 (Carmo’s unique formulation gives excellent adhesion to PUR based materials)

These components are manufactured in Denmark by Injection Molding, securing high quality, low unit prices, focus on sustainability and respect for the enveronmental impact of production.

Can be High Frequency welded using our electrode 07-500-0167

  • Material and geometry optimized for High Frequency (HF) welding
  • Variants on stock shipped worldwide within 5 businessdays
  • Variants on stock available in small quantities
  • Can be ordered in other colors and materials
  • Available in versions for welding to PUR based materials
  • Produced in Denmark using quality materials and in respect of sustainability and work environment

Order# Material Color From stock Standard Pack Proper-
ties
Use Comments In stock
('000 pcs)
05-247-2118 PVC
1 x 1.200
77,145
05-247-2115 PVC
1 x 1.200
-
05-247-2122 PVC
1 x 1.200
-
05-247-2102 PVC
1 x 1.200
13,360
05-247-2114 PVC
1 x 1.200
20,400
05-247-2119 PVC
1 x 1.200
-
05-247-2110 PVC/PUR
1 x 1.200
1,340









Mounts with
Related products
Customers also bought

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.

Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.


(*) Smaller quantities can be delivered on request for a repacking fee.

(**) Stocklevels are indicative.
