Carmo’s modular valve system is built around a common weldable flange, which is available in materials suitable for welding on PUR or PVC.

The pressure / inflation valve features a standard 3/4″ socket in which the three functional valves can be mounted.

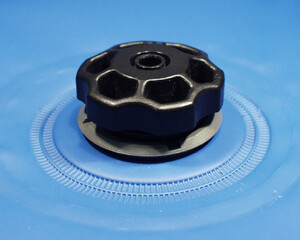

A low profile valve used for inflation. Ideal for dunnage bags and similar inflatable products

Easy filling via compressed air pistol or tube adaptor 09-726.

Suitable for pressures up to approximately 0.3 bar.

Available in ABS, Black

All measurements and drawings are nominal. For exact measurements – and for critical integration – please contact sales for detailed drawings.


Ordering and variant information

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings.


03-474

ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread

ABS Pressure Valve / inflation valve. Ideal for dunnage bags and similar inflatable products up to approximately 0.3 bar.
Materials
ABS+Metal
Colors
Fits with
Interested in other colors or materials? Please call for quote...
Small drawing of 03-474 ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread
Big drawing of 03-474 ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread
Nominal measurements in mm
Nominal measurements in mm

03-601

Threaded plastic flange with thread G 3/4"

HF/ultrasonic weldable plastic flange with internal G3/4" thread. Weldable onto PVC and PUR materials. Industry standard thread, compatible with a range of Carmo fittings and those of other manufacturers.
Materials
PVC,PVC/PUR
Colors
Fits with
Interested in other colors or materials? Please call for quote...
Small drawing of 03-601 Threaded plastic flange with thread G 3/4"
Big drawing of 03-601 Threaded plastic flange with thread G 3/4"
Nominal measurements in mm
Nominal measurements in mm

(*) Smaller quantities can be delivered on request for a repacking fee.
