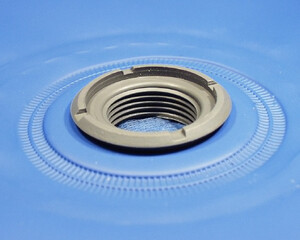

Carmo has a range of threaded internal flanges in industry standard thread sizes.
These are straight pipe threads (standard G or BSP). One is also available in the American pipe thread NPSM.
All can be produced in UV stabilised PVC for hf welding to PVC coated materials or a PVC/polyurethane blend for hf welding to PU coated materials.
All feature a recess suitable for a retainer ring for caps/fittings.

For the flange size G3/4″ there are a range of functional valves available, as well as other fittings.


Ordering and variant information

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings.


03-601

Threaded plastic flange with thread G 3/4"

HF/ultrasonic weldable plastic flange with internal G3/4" thread. Weldable onto PVC and PUR materials. Industry standard thread, compatible with a range of Carmo fittings and those of other manufacturers.
Materials
PVC,PVC/PUR
Colors
Fits with
Interested in other colors or materials? Please call for quote...
Small drawing of 03-601 Threaded plastic flange with thread G 3/4"
Big drawing of 03-601 Threaded plastic flange with thread G 3/4"
Nominal measurements in mm
Nominal measurements in mm

03-606

Threaded plastic flange with thread G 1/2"

HF/ultrasonic weldable plastic flange with internal G1/2" thread. Weldable onto PVC and PUR materials. Industry standard thread, compatible with a range of Carmo fittings and those of other manufacturers.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 03-606 Threaded plastic flange with thread G 1/2"
Big drawing of 03-606 Threaded plastic flange with thread G 1/2"
Nominal measurements in mm
Nominal measurements in mm

03-609

HF/ultrasonic weldable flange with internal American NPSM 1" thread

HF/ultrasonic weldable plastic flange with internal American NPSM 1" thread ( the straight version of NPT 1”). Weldable onto PVC coated materials. Industry standard thread.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 03-609 HF/ultrasonic weldable flange with internal American NPSM 1" thread
Big drawing of 03-609 HF/ultrasonic weldable flange with internal American NPSM 1" thread
Nominal measurements in mm
Nominal measurements in mm

03-611

HF/ultrasonic weldable flange with internal G1" thread (BSP 1”)

HF/ultrasonic weldable plastic flange with internal G1" thread (BSP 1”). Weldable onto PVC and PUR materials. Industry standard thread, compatible with a range of readily available fittings and connections.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 03-611 HF/ultrasonic weldable flange with internal G1" thread (BSP 1”)
Big drawing of 03-611 HF/ultrasonic weldable flange with internal G1" thread (BSP 1”)
Nominal measurements in mm
Nominal measurements in mm

(*) Smaller quantities can be delivered on request for a repacking fee.
