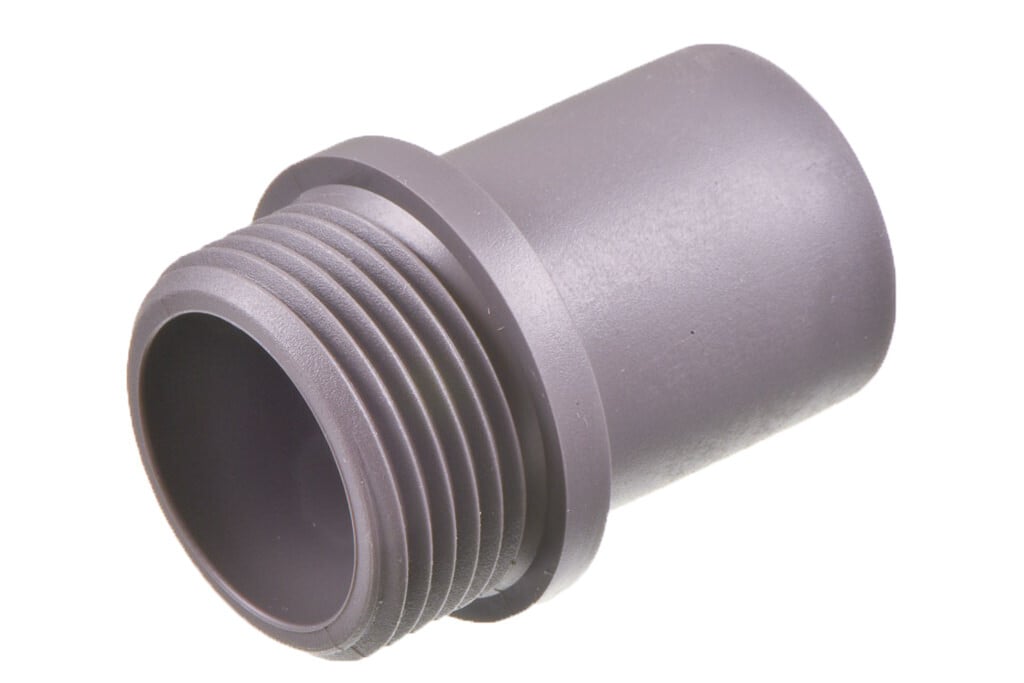

For attachment of tubing directly to the 03-601 flange. G 3/4" pipe thread, smooth body

Fits with the weldable flange 03-601 and can be used to attach piping to a contruction for filling or draining water or air.

After filling, the port kan be closed using one of the caps in the modular valve assortment.

Tube attachment by push fit or gluing (e.g. PVC tubing by cyklohexanone)

  • Material and geometry optimized for High Frequency (HF) welding
  • Variants on stock shipped worldwide within 5 businessdays
  • Variants on stock available in small quantities
  • Can be ordered in other colors and materials
  • Produced in Denmark using quality materials and in respect of sustainability and work environment

Order# Material Color From stock Standard Pack Proper-
ties		 Use Comments In stock
('000 pcs)
03-199-1203 PVC
2 x 500
2,965
Fits with
03-601
Threaded plastic flange with thread G 3/4
Threaded plastic flange with thread G 3/4
Threaded plastic flange with thread G 3/4"
03-961
Spare O-Ring for 03-645, 03-199
Spare O-Ring for 03-645, 03-199
Spare O-Ring for 03-645, 03-199
