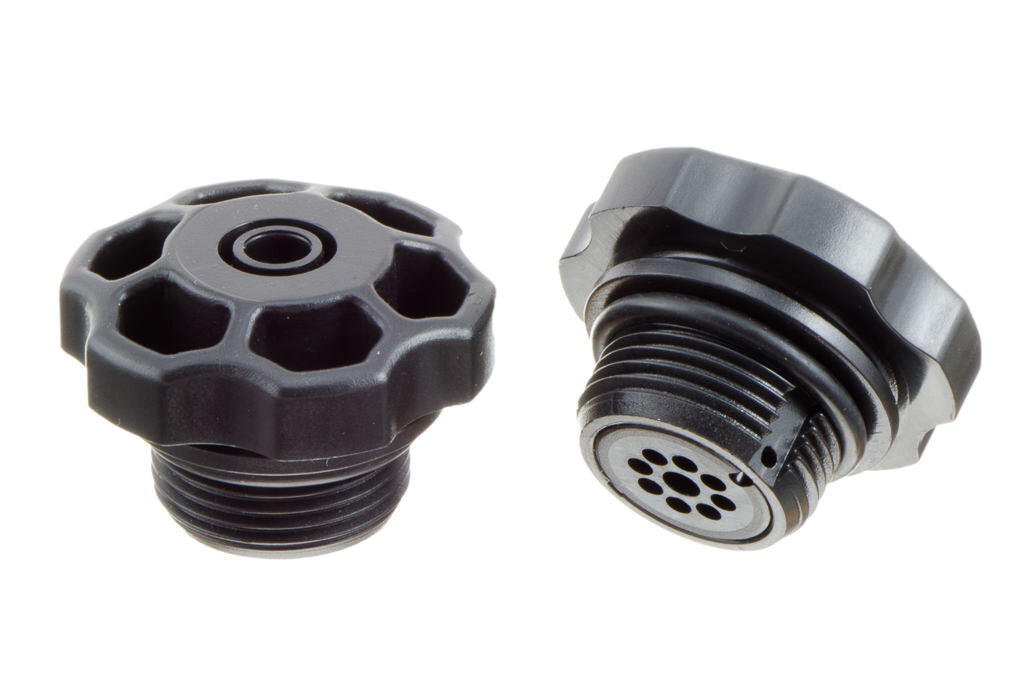

03-474 - ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread

ABS Pressure Valve for 03-601, easy filling via compressed air pistol or tube adaptor 09-726. A low profile valve used for inflation. Ideal for dunnage bags and similar inflatable products.
Suitable for pressures up to approximately 0.3 bar

Carmo's modular valve system is built around a common weldable flange, which is available in materials suitable for HF welding on PUR or PVC.
The valve features a standard 3/4" socket in which the three functional valves can be mounted:

• Inflation valve
• Vaccum valve
• Pressure relief valve

• Variants on stock shipped worldwide within 5 businessdays
• Variants on stock available in small quantities
• Available in versions with improved UV protection
• Produced in Denmark using quality raw materials from EU-based suppliers

Request a sample

Need a smaller quantity? Tell us how many you need. We may be able to repack for a fee, or refer you to one of our distributors.

Fits with	03-601 Threaded plastic flange with thread G 3/4" 03-714 PVC protection Cap with attachment ring - Vented 03-960 Retainer Ring for weldable flange
Related products	03-284 ABS plastic Vacuum valve with G 3/4" pipe thread 03-307 Inflation valve for inflatables, free flow, fixed plug, 7 mm 03-374 Pressure Relief Valve with G 3/4" pipe thread 03-601 Threaded plastic flange with thread G 3/4"
Customers also bought	03-601 Threaded plastic flange with thread G 3/4" 03-645 Coin Groove Cap for weldable flange 03-601 03-374 Pressure Relief Valve with G 3/4" pipe thread 03-199 PVC Threaded tube connector with G 3/4" pipe thread

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.

Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.

(*) Smaller quantities can be delivered on request for a repacking fee.

(**) Stocklevels are indicative.
