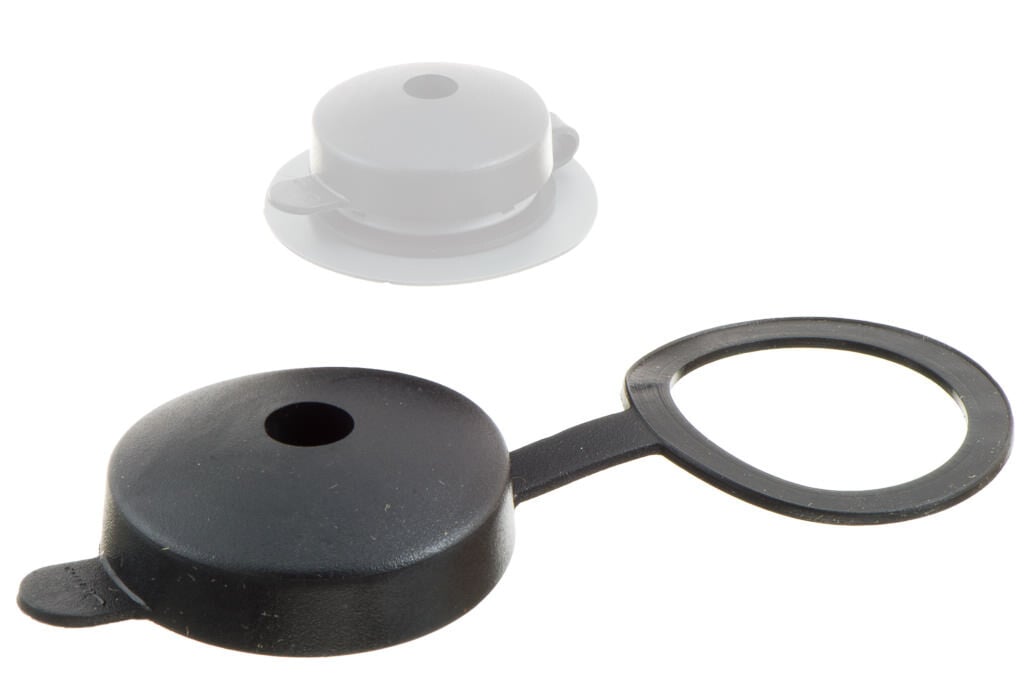

Protects the valve from dust and dirt, fits vacuum valve 03-274. Snug fit to the valve body and a pull tab for easy removal.

Carmo's modular valve system is built around a common weldable flange, which is available in materials suitable for HF welding on PUR or PVC.
The valve features a standard 3/4" socket in which the three functional valves can be mounted:

  • Inflation valve
  • Vaccum valve
  • Pressure relief valve

  • Variants on stock shipped worldwide within 5 businessdays
  • Variants on stock available in small quantities
  • Can be ordered in other colors and materials
  • Produced in Denmark using quality materials and in respect of sustainability and work environment

Order# Material Color From stock Standard Pack Proper-
ties		 Use Comments In stock
('000 pcs)
03-711-2002 PVC
1 x 1.000
4,665
Fits with
03-374
Pressure Relief Valve with G 3/4
Pressure Relief Valve with G 3/4
Pressure Relief Valve with G 3/4" pipe thread
03-474
ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread
ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread
ABS plastic Pressure / Inflation Valve with G 3/4 inch pipe thread
03-475
Threaded Plug Incl. 'O'-Ring with G 3/4 inch pipe thread
Threaded Plug Incl. 'O'-Ring with G 3/4 inch pipe thread
Threaded Plug Incl. 'O'-Ring with G 3/4 inch pipe thread
03-601
Threaded plastic flange with thread G 3/4
Threaded plastic flange with thread G 3/4
Threaded plastic flange with thread G 3/4"
