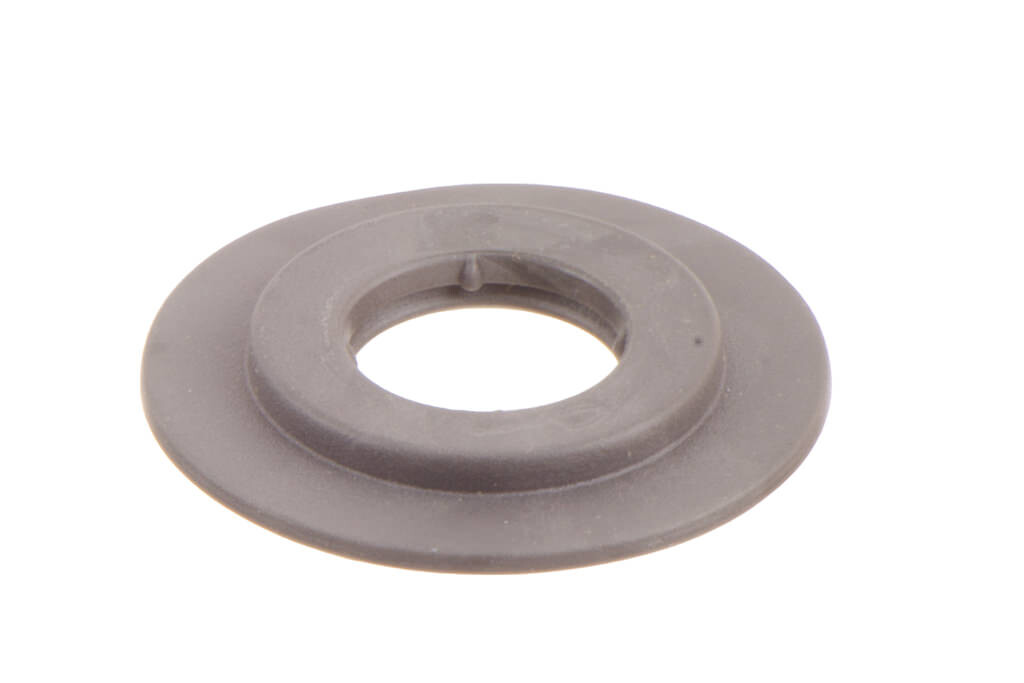

Heavy, 13/32 mm weldable plastic eyelet with square shoulders. Delivered stacked for use in automatic mounting/welding machines.
HF Welded PVC and plastic eyelets will fuse together with the foil and result in a joint that is significantly stronger and can withstand significantly higher pull forces than metal eyelet. This is especially true when working in mesh materials.
PVC and plastic eyelets will not tear out and will not rust and stain the material. They can be colour matched to the fabric and will make recycling of PVC and vinyl banners much easier.
Typically used for hole reinforcements in banners, tarpaulins, building wraps etc. Geometry and material optimised for High Frequency (HF) welding.
Materials: PZ33, standard PVC compound, hardness 45+/-2 Shore D, PY28, modified for operating temperatures down to –20°C, hardness 51+/-2 Shore D
Can be High Frequency welded using our electrode 07-402-0030
- Material and geometry optimized for High Frequency (HF) welding
- Delivered stacked for use in Carmo's (or 3rd party) automatic punch and welding machines
- Available in versions with improved UV protection
- Available in versions with extended temperature range
- Produced in Denmark using quality materials and in respect of sustainability and work environment
|Order#||Material||Color||From stock||Standard Pack||Proper-
|04-276-2001||PVC||46 x 174||14,086|
|04-276-2051||PVC||46 x 174||29,220|
|04-276-2052||PVC/PUR||46 x 174||38,438|
|Customers also bought|
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
