Carmo is a world leader in weldable plastic eyelets and grommets.

Carmos HF weldable plastic eyelets are strong, flexible and do not rupture. We blend the right composition of raw materials to meet your specific demands for performance, weather conditions, UV radiation exposure, etc.

Compared to metal grommets, welded PVC eyelets will fuse together with the foil and result in a joint that is significantly stronger and can withstand significantly higher pull forces. This is especially true when working in mesh materials.

Watch the Pull Experiment here. The result speaks for itself.

Carmo’s eyelets are typically used for reinforcement of holes in foils and fabric. In building wraps, banners and tarpaulins.


  • Outperforms metal grommets in flexibility and strength
  • Durable in harsh environments. Will not rust and leave stains
  • No hemming required,
  • the only solution for single layer vinyl.
  • “Invisible” placement of eyelets on the back of the banner is possible.

[accordions_pickplguins id=”2187″]

Carmo weldable plastic eyelets can be delivered:

Eyelets with square shoulders


square shoulders

No d1 (mm) d2 (mm) d3 (mm)
04-111 5.0 9.3 12.6
04-112 6.5 10.7 14.5
04-274 * 7.0 14.5 24.5
04-100 8.0 12.9 16.9
04-275 * 11.0 17.5 27.1
04-276 13.0 22.0 32.2
04-277 * 15.0 24.5 37.2
04-278 * 19.0 30.2 43.3
04-279 * 40.0 53.3 67.1

*) Heavy duty design

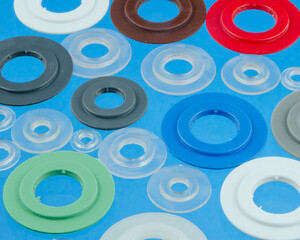

Eyelets with round shoulders


round shoulders

No d1 (mm) d2 (mm) d3 (mm)
04-121 9.5 14.0 19.8
04-101 * 12.0 20.0 29.8
04-122 12.7 18.0 23.3
04-123 15.8 21.8 27.4
04-125 25.0 31.0 36.4

*) Heavy duty design

Application notes


How to mount weldable eyelets…

Our weldable eyelets are typically mounted using High Frequency Welding (also known as HF welding or RF welding) or ultrasonic welding. We supply a full range of tools and electrodes – covering all our geometries – for use in existing bar welders, and a line of dedicated machines for integrated punching, automatic feeding and welding of eyelets.

Prototyping and small-scale production…

For small-scale production, prototyping and repairs we also recommend our unique Carmo seal, suitable for gluing soft PVC to PVC. Carmo Seal is resistant to heat, water, oil, petrol, plasticizer and ageing.

How to increase strength…

Depending on the application, Carmo PVC eyelets can be used in both single-sided and double-sided configurations:

Welding PVC eyelets Single sided eyelet welding offers quick insertion and welding and the possibilities to hide the eyelet from direct view – especially useful in high-quality banner production.

Double sided eyelet welding offers maximum strength and durability – especially in mesh materials.


Ordering and variant information

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings.

Metal reenforced Plastic Eyelets (pat. pending)


04-283

Metal Reinforced Eyelet (Pat. Pending).

The ultimate eyelet for demanding applications. High pull forces and durability. A metal eyelet moulded directly into the plastic eyelet delivers superior strength and durability compared to traditional plastic eyelets.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-283 Metal Reinforced Eyelet (Pat. Pending).
Big drawing of 04-283 Metal Reinforced Eyelet (Pat. Pending).
Nominal measurements in mm
Nominal measurements in mm

Plastic Eyelets with square shoulders


04-111

Plastic Eyelet, 5 mm

5 mm Plastic eyelet with square shoulders. Optimised for High Frequency (HF) welding.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-111 Plastic Eyelet, 5 mm
Big drawing of 04-111 Plastic Eyelet, 5 mm
Nominal measurements in mm
Nominal measurements in mm

04-112

PVC Eyelet, 6.5 mm

6.5 mm Plastic eyelet with square shoulders. Typically used as hole reinforcements in banners, tarpaulins, building wraps etc.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-112 PVC Eyelet, 6.5 mm
Big drawing of 04-112 PVC Eyelet, 6.5 mm
Nominal measurements in mm
Nominal measurements in mm

04-274

Heavy duty pvc eyelet, 7/25 mm

7/25 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding. Typically used for hole reinforcements in banners, tarpaulins, building wraps etc.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-274 Heavy duty pvc eyelet, 7/25 mm
Big drawing of 04-274 Heavy duty pvc eyelet, 7/25 mm
Nominal measurements in mm
Nominal measurements in mm

04-100

Weldable Plastic Eyelet, Light, 8 mm

8 mm Plastic eyelet with square shoulders. Optimised for High Frequency (HF) welding.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-100 Weldable Plastic Eyelet, Light, 8 mm
Big drawing of 04-100 Weldable Plastic Eyelet, Light, 8 mm
Nominal measurements in mm
Nominal measurements in mm

04-275

Weldable plastic Eyelet , Heavy, 11/27 mm, Stacked

11/27 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding and use in automatic machines
Materials
PELD,PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-275 Weldable plastic Eyelet , Heavy, 11/27 mm, Stacked
Big drawing of 04-275 Weldable plastic Eyelet , Heavy, 11/27 mm, Stacked
Nominal measurements in mm
Nominal measurements in mm

04-276

Heavy duty plastic Eyelet, 13/32 mm Stacked

13/32 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding and use in automatic machines.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-276 Heavy duty plastic Eyelet, 13/32 mm Stacked
Big drawing of 04-276 Heavy duty plastic Eyelet, 13/32 mm Stacked
Nominal measurements in mm
Nominal measurements in mm

04-277

Heavy duty PVC Eyelet , 15/37 mm, Stacked

15/37 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding and use in automatic machines
Materials
PELD,PVC,PVC/PUR
Colors
Fits with
Interested in other colors or materials? Please call for quote...
Small drawing of 04-277 Heavy duty PVC Eyelet , 15/37 mm, Stacked
Big drawing of 04-277 Heavy duty PVC Eyelet , 15/37 mm, Stacked
Nominal measurements in mm
Nominal measurements in mm

04-278

Plastic Eyelet, Heavy, 19/43 mm, Stacked

19/43 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding and use in automatic machines.
Materials
PELD,PVC,PVC/PUR
Colors
Fits with
Interested in other colors or materials? Please call for quote...
Small drawing of 04-278 Plastic Eyelet, Heavy, 19/43 mm, Stacked
Big drawing of 04-278 Plastic Eyelet, Heavy, 19/43 mm, Stacked
Nominal measurements in mm
Nominal measurements in mm

04-279

PVC Eyelet, 40/67 mm, Heavy

40/67 mm heavy duty plastic eyelet with square shoulders. Optimised for HF welding.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-279 PVC Eyelet, 40/67 mm, Heavy
Big drawing of 04-279 PVC Eyelet, 40/67 mm, Heavy
Nominal measurements in mm
Nominal measurements in mm

Plastic Eyelets with round shoulders


04-121

Plastic Eyelet, 3/8" (9.5 mm)

3/8" (9,5 mm) Plastic eyelet with round shoulders. Optimised for High Frequency (HF) welding.
Materials
PVC,PVC/PUR
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-121 Plastic Eyelet, 3/8" (9.5 mm)
Big drawing of 04-121 Plastic Eyelet, 3/8" (9.5 mm)
Nominal measurements in mm
Nominal measurements in mm

04-101

PVC Eyelet, Heavy, 11/30 mm

11/30 mm plastic eyelet with square shoulders. Heavy duty design for demanding applications. Optimised for High Frequency (HF) welding.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-101 PVC Eyelet, Heavy, 11/30 mm
Big drawing of 04-101 PVC Eyelet, Heavy, 11/30 mm
Nominal measurements in mm
Nominal measurements in mm

04-122

PVC Eyelet, 1/2"

1/2" Plastic eyelet with round shoulders. Optimised for High Frequency (HF) welding.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-122 PVC Eyelet, 1/2"
Big drawing of 04-122 PVC Eyelet, 1/2"
Nominal measurements in mm
Nominal measurements in mm

04-123

Plastic Eyelet, 5/8" (15.8 mm)

5/8" (15.8 mm) Plastic eyelet with round shoulders. Optimised for High Frequency (HF) welding.
Materials
PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-123 Plastic Eyelet, 5/8" (15.8 mm)
Big drawing of 04-123 Plastic Eyelet, 5/8" (15.8 mm)
Nominal measurements in mm
Nominal measurements in mm

04-125

Plastic eyelet, 1" (25 mm)

1" (25 mm) Plastic eyelet with round shoulders. Optimised for High Frequency (HF) welding.
Materials
PUR,PVC
Colors
Interested in other colors or materials? Please call for quote...
Small drawing of 04-125 Plastic eyelet, 1" (25 mm)
Big drawing of 04-125 Plastic eyelet, 1" (25 mm)
Nominal measurements in mm
Nominal measurements in mm

(*) Smaller quantities can be delivered on request for a repacking fee.
