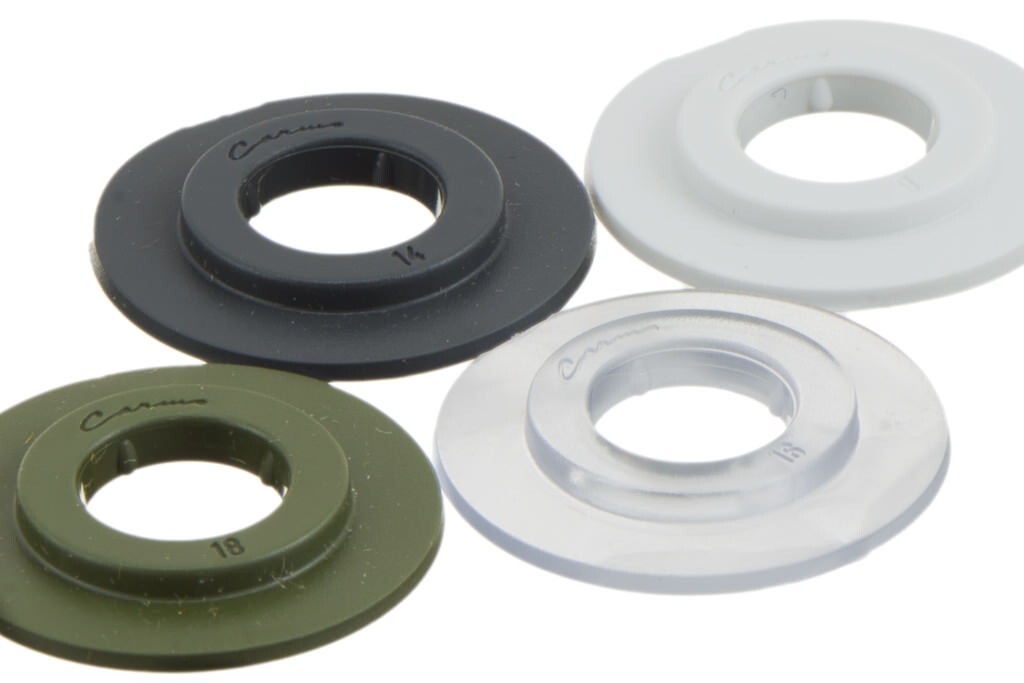

04-275 - Weldable plastic Eyelet , Heavy, 11/27 mm, Stacked

11/27 mm heavy duty plastic eyelet with square shoulders.<br />Typically used for hole reinforcements in banners, tarpaulins, building wraps etc. Geometry and material optimised for High Frequency (HF) welding.<br />HF Welded PVC and plastic eyelets will fuse together with the foil and result in a joint that is significantly stronger and can withstand significantly higher pull forces than metal eyelet. This is especially true when working in mesh materials.<br />PVC and plastic eyelets will not tear out and will not rust and stain the material.<br />Plastic Eyelets can be colour matched to the fabric and will make recycling of banners and tarpaulins much easier.

Materials: PZ33, standard PVC compound, hardness 45+/-2 Shore D, PY28, modified for operating temperatures down to –20°C, hardness 51+/-2 Shore D. Available in PE too for PE based materials.

These components are manufactured in Denmark by Injection Molding, securing high quality, low unit prices, focus on sustainability and respect for the enveronmental impact of production.

Can be High Frequency welded using our electrode 07-402-0010, Ingen til PE

Most Carmo PVC components can be delivered in Carmo's special PVC/PUR mixture for HF welding to PUR substrates and foil. Please contact sales to investigate further and inquire about pricing and minimum order quantities.

• Material and geometry optimized for High Frequency (HF) welding
• Delivered stacked for use in Carmo's (or 3rd party) automatic punch and welding machines
• Variants on stock shipped worldwide within 5 businessdays
• Available in versions for welding to PUR based materials
• Produced in Denmark using quality materials and in respect of sustainability and work environment

Mounts with	CP8 Automatic double sided welding machine for HF welding of plastic eyelets CP9 Automatic single sided welding machine for HF welding of plastic eyelets EP3 Manual welding tool for plastic eyelets UG4 Electrodestand
Related products	04-274 Heavy duty pvc eyelet, 7/25 mm 04-277 Heavy duty PVC Eyelet , 15/37 mm, Stacked 04-278 Plastic Eyelet, Heavy, 19/43 mm, Stacked 04-279 PVC Eyelet, 40/67 mm, Heavy
Customers also bought	04-512 Plastic snap grommet Set, Ø12 mm 03-601 Threaded plastic flange with thread G 3/4" 04-278 Plastic Eyelet, Heavy, 19/43 mm, Stacked 02-117 PVC Washer For 02-031

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.

Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.

(*) Smaller quantities can be delivered on request for a repacking fee.

(**) Stocklevels are indicative.
