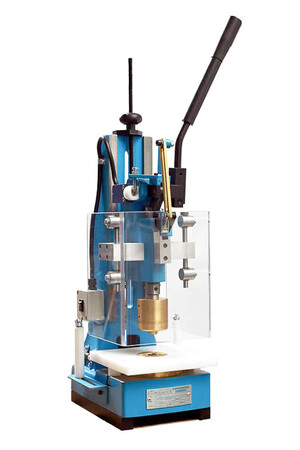

The EP3 manual welding press is a light hand-operated (manual) press that is extremely flexible and versatile. The EP3 welding press can weld eyelets in different sizes and shapes as well as e.g. cleats, line supports, and buttons. This makes the EP3 a good choice for e.g. tarpaulin producers and banner suppliers as well as a wide range of other industries.

The EP3 manual welding machine can be used with both punching and non-punching electrodes. The press has been constructed in such a way that electrodes can be exchanged very easily. Therefore, it is possible to change the electrode to a different size eyelet or shape in a few minutes, or you can change the electrode to weld e.g. cleats or line supports instead.

The EP3 is easy and safe to operate. Punching and welding take place in one operation. The integrated toggle joint will lock the press during welding and cooling —leaving the operator with both hands free to prepare next welding.

The punching force is so high that the operator can easily punch through 4 layers of reinforced plastic sheeting.

the manual eyelet machine EP3 is equipped with a safety shield.

Please Note:

The press must be connected to an HF-Generator with a coax-cable (2.5 – 3 kW recommended).

These machines are designed, hand-built and tested in Denmark, offering superb quality and durability.

Manual welding press – simple and cost-efficient

A manual welding press like EP3 is a user friendly and cost-efficient solution for welding of e.g. eyelets, cleats, line supports etc. The welding machine uses high frequency welding that combined with high pressure and heat, presses the chosen plastic component together with the foil the component is to be welded on. The EP3 is easy to operate and requires minimal maintenance. In addition, it is extremely precise in its weldings, which ensures high quality every time.

To use the welding machine, the user must first place the plastic component in the machine. Then, the machine must be closed and the necessary distance and pressure must be adjusted before the actual welding begins. When the welding is done, the machine and the plastic component/foil must cool for about 3 seconds before it can be removed from the welding machine.

Naturally, it is important to observe all security precautions when working with the welding machine. The welding press is equipped with a safety screen so that the operator can safely operate the welding press with maximum safety.

In addition, it is important to review the manual for the EP3 welding press before use, to be sure that all the safety instructions are understood and you are using the press correctly.

Ordering and variant information

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings.

EP3 - Manual welding tool for plastic eyelets
Manual single and double sided welding. Must be attached to HF generator. Additional electrodes sold separately
Order# Description From stock Properties Comments
EP3-electrodes - Electrodes for use in EP3 manual welding tool
Order# Description From stock Properties Comments
07-462-7004 EP3 Electrode set 11/28 1+2E (04-283)

(*) Smaller quantities can be delivered on request for a repacking fee.
