Carmo manufactures HF electrodes for all our HF weldable components, to ensure that our customers can achieve the best result combining our components to your products. The electrodes are normally produced in brass or a combination of brass and aluminium Please contact sales for details on electrodes and options for our different weldable components. Read more on high frequency welding here, and on welding of PVC eyelets here

Using a stand-alone HF electrode for welding PVC Cleat

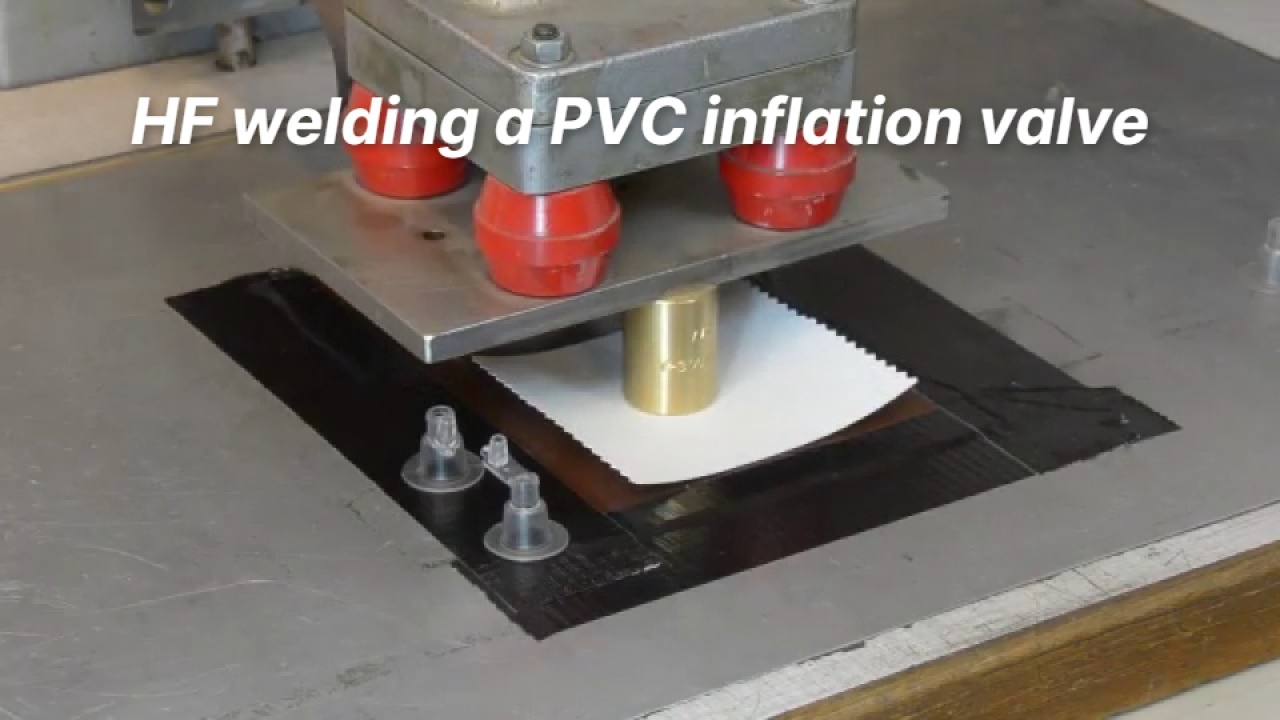

Carmo HF-welds a PVC inflation valve to the fabric using a 2.5 kW HF generator, a bar-welder and a Carmo standalone electrode — a clean, repeatable weld for premium and safety-critical inflatables.

Carmo’s HF electrodes are available as stand alone models, and in models for use in the series of tools and machines available. Also the HF electrodes are available in special functions and with added functionalities:
Singlesided weldingWill mount the component on one side only. Relevant for most geometries
Double sided weldingWill mount a component on each side of the foil. Primarily relevant for mounting reinforcement eyelets in automatic machines or the UG4 tool
Perforating actionWill perforate the material for manual removal
Punching actionWill completely punch the material

Ordering and variant information

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings.

Standalone - Standalone electrodes
Order#DescriptionFrom stockPropertiesComments
07-100-0030Stand-alone electrode (01-090)01-090
07-100-0045Stand-alone electrode (01-055)01-055
07-100-0061Stand-alone electrode (01-112)01-112
07-200-0010Upper electrode for thin foil (02-224+02-324)
07-200-0020Upper electrode for medium foil (02-224+02-324)
07-200-0030Upper electrode for thick foil (02-224+02-324)
07-200-0040Lower electrode (02-224+02-324)
07-200-0051Lower electrode (02-224)
07-200-0101Upper electrode (02-224)
07-200-0130Stand-alone electrode (02-17)
07-200-0150Upper electrode (02-117)
07-200-0170Stand-alone electrode with insert (02/118)
07-200-7011Electrode set (02-024/224/324)02-024, 02-224, 02-324
07-200-7050Electrode set (02-117/118)02-117, 02-118
07-300-0010Stand-alone electrode (03-628)03-623, 03-628
07-300-0021Stand-alone electrode (03-634+03-633)03-632, 03-633, 03-634
07-300-0023Stand-alone electrode (03-045)03-045
07-300-0024Stand-alone electrode (03-640)03-640
07-300-0025Stand-alone electrode (03-641)03-641
07-300-0030Stand-alone electrode (03-734+03-129)03-129, 03-734
07-300-0040Stand-alone electrode (03-735+03-130)03-130, 03-735
07-300-0070Stand-alone electrode (03-730)03-730
07-300-0081Stand-alone electrode (03-731)03-731
07-300-0106Stand-alone electrode (03-745)03-745
07-300-0140Stand-alone Electrode (03-112/207/307/327/612)03-112, 03-207, 03-307, 03-327, 03-612
07-300-0151Stand-alone electrode (03-802)03-802, 03-803
07-300-0160Stand-alone electrode (03-801)03-801
07-300-0190Stand-alone electrode (03-160+03-325)03-305, 03-325
07-300-0194Stand-alone electrode (03-227)03-227
07-300-0200Stand-alone electrode (03-115+03-165)
07-300-0201Stand-alone electrode (03-309+03-329)03-309, 03-329
07-300-0500SPLITELEKTRODE WITH HANDLE FOR 03-58003-580
07-300-7012Standalone electrode sets (03-601))03-601
07-300-7013Stand-alone electrode set (03-606)03-606
07-300-7014Electrode set for 03-60903-609, 03-611
07-400-0030Stand-alone electrode (04-105)04-105
07-400-0040Stand-alone electrode (04-141)04-141
07-400-005008-078
07-500-0011Stand-alone electrode (05-686)05-686
07-500-0020Stand-alone electrode (05-646/04-206)05-046, 05-646
07-500-0030Stand-alone electrode (05-684)05-684
07-500-0071Stand-alone electrode (05-145)05-145
07-500-0093Stand-alone electrode (05-441/442/446)05-041, 05-441, 05-442, 05-446
07-500-0100Stand-alone electrode (05-132)05-132
07-500-0110Stand-alone electrode (05-431)05-431
07-500-0112Stand-alone electrode (05-248)05-248
07-500-0120Stand-alone electrode (05-148)05-148
07-500-0140Stand-alone electrode (05-146)05-146
07-500-0150Stand-alone electrode (05-246)05-246
07-500-0167Stand-alone electrode (05-247)05-247
07-500-0171Stand-alone electrode (05-147)05-147
07-500-0210Stand-alone electrode (05-996)
07-900-0011Stand-alone electrode (9-210+09-212)09-210, 09-212
07-900-0020Stand-alone electrode (9-229)09-229
07-900-0030Stand-alone electrode (9-119)09-119
07-900-0040Stand-alone electrode (9-219)09-219
07-900-0050Stand-alone electrode (9-002)09-002
07-900-0212Stand-alone electrode (09-677)09-677
07-900-0220Stand-alone electrode (09-675)09-675
(*) Smaller quantities can be delivered on request for a repacking fee.
