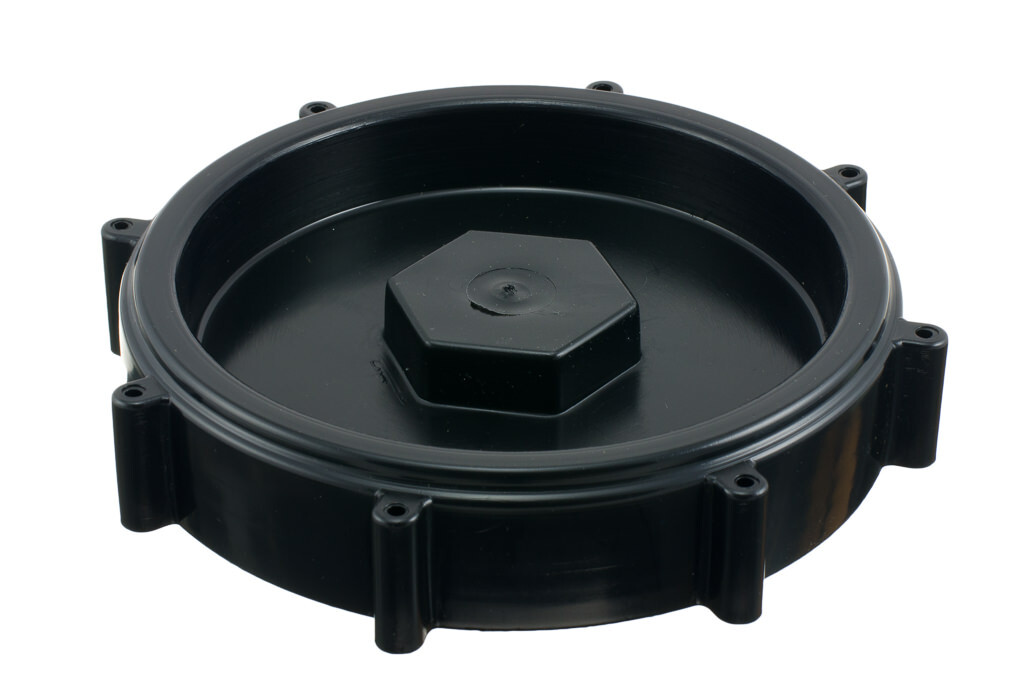

03-569 - Large, heavy duty HDPE Cap with Gasket, 146 mm

Large, heavy duty cap with 'O' ring. Can be tightened by hand or via external hex head feature.
Typically used In PVC or PVC/PUR containers for filling/emptying and inspection of fluids, powders or granules at low pressure.

• Variants on stock shipped worldwide within 5 businessdays
• Variants on stock available in small quantities
• Can be ordered in other colors and materials
• With build-in gasket
• Produced in Denmark using quality materials and in respect of sustainability and work environment

Order#	Material	Color	From stock	Standard Pack	Proper- ties	Use	Comments	In stock ('000 pcs)
03-569-7101	PEHD+Rubbe			1 x 70				-

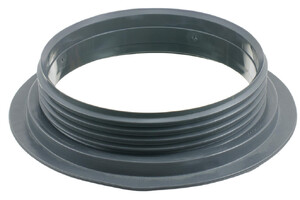

Fits with	03-735 Plastic Filler Neck, 146 mm
Related products	03-561 PE plastic screwcap with Wings, 25 mm 03-568 PEHD threaded plastic Cap with Gasket, 98 mm 03-935 Screw Cap, 25 mm for weldable nozzle 03-936 Plastic Cap, 25 mm for weldable nozzle, w/wo gasket
Customers also bought	03-735 Plastic Filler Neck, 146 mm 03-601 Threaded plastic flange with thread G 3/4" 03-130 Threaded filler neck and cap + Gasket, Ø146 mm bore 03-309 PVC Inflation valve, Free flow, fixed plug, 9 mm inlet

All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.

Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.

---

(*) Smaller quantities can be delivered on request for a repacking fee.

(**) Stocklevels are indicative.
