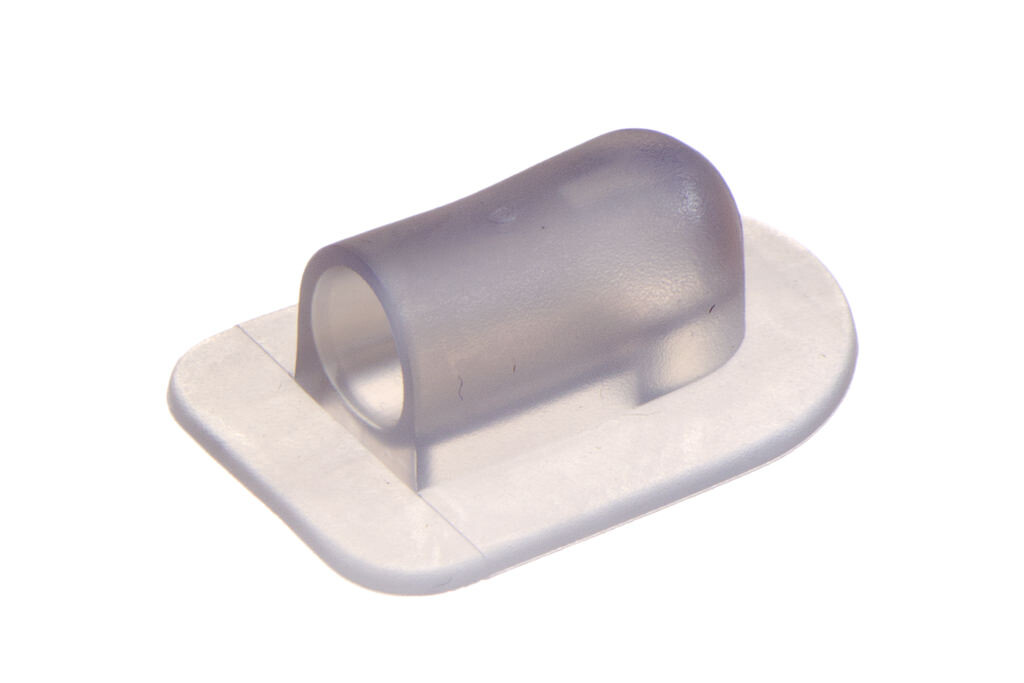

Very low profile right angle, weldable tube connector for medical applications. Typically used with Ø6mm tubing. Features an internal tube stop, making assembly easy.
Both the material and the geometry of the PVC button are optimized for High frequency welding.
Welding times of 1.5 – 2 seconds are typical, depending on the HF generator used and the thickness of the material used.
Can be High Frequency welded using our electrode 07-900-0050
- Material and geometry optimized for High Frequency (HF) welding
- Variants on stock shipped worldwide within 5 businessdays
- Available in versions for welding to PUR based materials
- Can be sterilized and maintain functionality ***
- Produced in Denmark using quality materials and in respect of sustainability and work environment
|Order#||Material||Color||From stock||Standard Pack||Proper-|
|09-002-1002||PVC||4 x 4.000||35,200|
|09-002-1006||PVC/PUR||4 x 4.000||13,770|
|09-002-1011||PVC/PUR||4 x 4.000||0,400|
|Customers also bought|
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
(***) Carmo's Medical components are designed to be able to withstand common sterilisation. However, it is the responsibility of the customer to verify the product's resilience to any specific sterilisation process.
