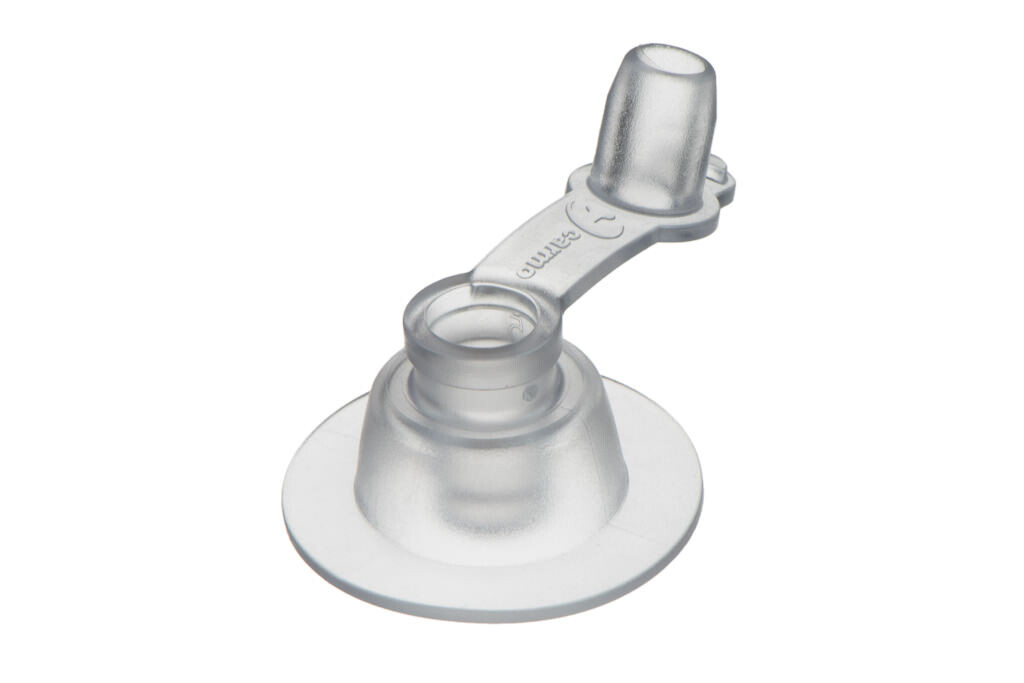

HF/ultrasonic weldable inflation valve with non-return application enables easy inflation.
Both the geometry and the material of this Non-Return Valve are optimised for High frequency welding.
Available in PVC PVC/PUR blend and now phtalate free PVC approved for toys to EN71-3.
Can be High Frequency welded using our electrode 07-300-0194.
This product replaces : 03-957.
- Material and geometry optimized for High Frequency (HF) welding
- Variants on stock shipped worldwide within 5 businessdays
- Variants on stock available in small quantities
- Can be ordered in other colors and materials
- Non-return valve for easy inflation
- Produced in Denmark using quality materials and in respect of sustainability and work environment
| Order# | Material | Color | From stock | Standard Pack | Proper- ties |
Use | Comments | In stock ('000 pcs) |
|---|---|---|---|---|---|---|---|---|
| 03-227-0003 | PVC | 1 x 4.000 | - | |||||
| 03-227-0001 | PVC | 1 x 4.000 | 9,700 | |||||
| 03-227-0004 | PVC/PUR | 1 x 4.000 | - | |||||
| Mounts with | |
| Related products | |
| Customers also bought |
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
