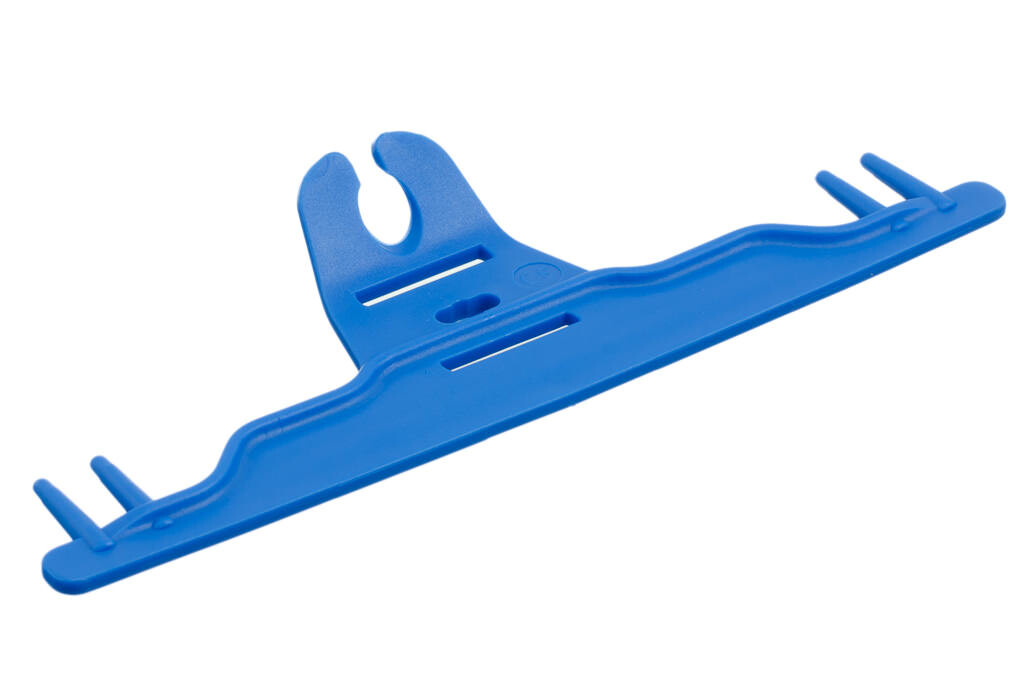

End of bed/wall hanger with pins For many types of medical bag and urine bags.
Must be paired with hook (09-112) sold separately.
Carmo’s hangers for urine bags are supplied as 2 parts, which must be assembled before use: A bar on which the bag is placed and a clamp to go over the bedframe.
The bar is made with slits making velcro band an option as alternative to the clamp.
Carmo hangers are designed so that a dripchamber can be used in connection with the hangers.
The clamp is designed so that it can act as a hoseclamp during removal of the filled bag.
Carmo hangers are available in PP or PA materials. PA in case the hangers shall be sterilized.
- Variants on stock shipped worldwide within 5 businessdays
- Variants on stock available in small quantities
- Can be ordered in other colors and materials
- Produced in Denmark using quality raw materials from EU-based suppliers
Carmo A/S's quality management system is certified to ISO 13485:2016 Medical devices quality management system by Bureau Veritas (accredited by DANAK), certificate no. DK020611. Scope: Design, development, manufacture and assembly of injection molded plastic components. Valid: 2. September 2026 – 1. September 2029.
All Carmo plastic components are manufactured under the same QMS and procedures.
| Order# | Material | Color | From stock | Standard Pack | Proper- ties | Use | Comments | MOQ (pcs.) | In stock (pcs.) |
|---|---|---|---|---|---|---|---|---|---|
| 09-114-1005 | PA | 1 x 500 | 500 | 11.120 | |||||
| 09-114-1007 | PP | 1 x 500 | 500 | - |
Need a smaller quantity? Tell us how many you need. We may be able to repack for a fee, or refer you to one of our distributors.
| Fits with | |
| Related products |
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
(***) Carmo's Medical components are designed to be able to withstand common sterilisation. However, it is the responsibility of the customer to verify the product's resilience to any specific sterilisation process.
