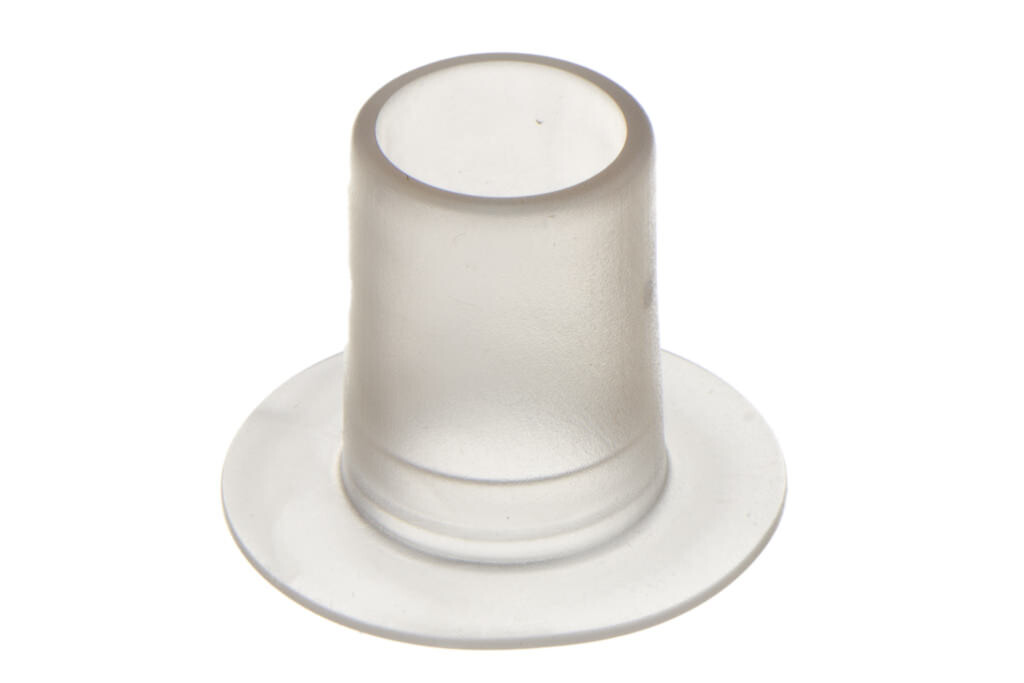

Weldable tubing flange for connecting tubes to foil, bags, containers etc. Will fit tubes with OD of approx. 13 mm
Both the material and the geometry of the Tubing flange are optimized for High frequency and Ultrasonic welding.
Welding times of 1.5 – 2 seconds are typical, depending on the HF generator used and the thickness of the material used.
Can be High Frequency welded using our electrode 07-400-0050
These components are manufactured in Denmark by Injection Molding, securing high quality, low unit prices, focus on sustainability and respect for the environmental impact of production.
Can be High Frequency welded using our electrode 07-400-0050
Need a custom or modified version? Carmo Print Moulding delivers functional prototypes in days, and Engineering & Injection Moulding takes your concept to volume production.
- Material and geometry optimized for High Frequency (HF) welding
- Available in versions with extended temperature range
- Can be sterilized and maintain functionality ***
- Produced in Denmark using quality raw materials from EU-based suppliers
Carmo A/S's quality management system is certified to ISO 13485:2016 Medical devices quality management system by Bureau Veritas (accredited by DANAK), certificate no. DK020611. Scope: Design, development, manufacture and assembly of injection molded plastic components. Valid: 2. September 2026 – 1. September 2029.
All Carmo plastic components are manufactured under the same QMS and procedures.
| Order# | Material | Color | From stock | Standard Pack | Proper- ties | Use | Comments | MOQ (pcs.) | In stock (pcs.) |
|---|---|---|---|---|---|---|---|---|---|
| 08-078-0001 | PVC | 1 x 3.000 | 18.000 | - |
Need a smaller quantity? Tell us how many you need. We may be able to repack for a fee, or refer you to one of our distributors.
| Related products | |
| Customers also bought |
All measurements and drawings are nominal. For exact measurements - and for critical integration - please contact sales for detailed drawings. Carmo is not responsible for misprints and technical changes.
Please note: Products in PVC are inherently susceptible to deformation due to elevated temperatures during storage and transportation. Carmo recommends storing and transporting components between 0 and 30 deg Celsius. In order to help minimise this risk, all Carmo products are shipped in extremely rigid cartons with a comparatively small number of parts per box.
(*) Smaller quantities can be delivered on request for a repacking fee.
(**) Stocklevels are indicative.
(***) Carmo's Medical components are designed to be able to withstand common sterilisation. However, it is the responsibility of the customer to verify the product's resilience to any specific sterilisation process.
